Thermostat wiring becomes more important as homes add programmable controls, connected thermostats, zoning equipment, and more complex heating or cooling systems. Strong thermostat wiring ideas focus on flexibility, clear identification, and a cable route that remains useful when controls change.
A few spare conductors and good documentation can be more valuable than selecting the newest thermostat first.
Older thermostats may use only a few wires, while newer controls can require additional conductors for power or system functions. During construction or a major renovation, installing suitable cable with spare conductors can reduce the chance of needing another wall opening later.
Coordinating thermostat locations with well-planned home interiors also helps prevent the control from ending up behind furniture, curtains, or doors.
Thermostats should sense conditions representative of the occupied space. Locations affected by unusual drafts, direct sun, nearby heat sources, or isolated corners may produce readings that do not match the rest of the room.
Follow the HVAC equipment and thermostat manufacturer’s placement guidance rather than selecting a location only for appearance.
Wire colors can be helpful, but they should not be treated as proof of a conductor’s function. Existing systems may have been wired differently, repaired, or modified over time.

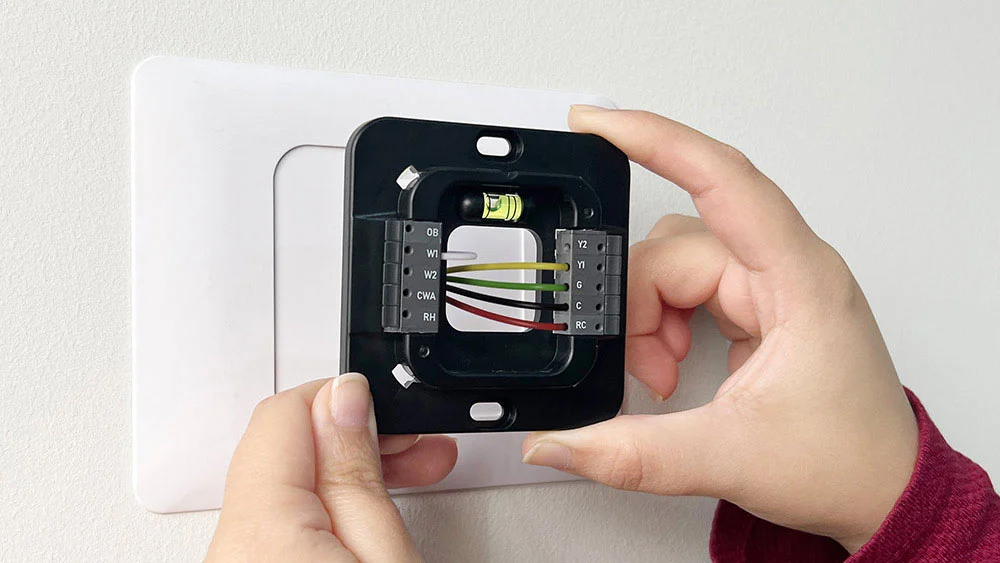

Label each conductor according to its actual terminal before removing an old thermostat. This fits the same logic used in organized household systems: documentation is more dependable than memory when equipment is replaced years later.
| Planning Choice | Reason | Practical Value |
|---|---|---|
| Spare conductors | Supports later changes | Less rewiring |
| Terminal labels | Preserves identification | Easier replacement |
| Photos before removal | Records existing setup | Better troubleshooting |
| Accessible cable route | Simplifies service | Easier upgrades |
Many modern thermostats need continuous electrical power, but heating and cooling systems vary. Some installations have an available common conductor, while others may require a different manufacturer-approved arrangement.
Do not assume that simply connecting an unused wire solves the problem. Both ends of that conductor must be correctly connected for the specific HVAC system.
For homes where technology is meant to remain unobtrusive, restful interior inspiration can support discreet thermostat placement without compromising access or sensing performance.
Photos of the thermostat terminals are useful, but the other end of the cable matters just as much. Clear documentation at the furnace, air handler, zone controller, or other control equipment can make future troubleshooting easier.
If spare conductors are present, identify them rather than cutting them short. Store unused wires neatly so they remain available.
Thermostat circuits are commonly low voltage, but HVAC equipment can also contain mains-voltage components. Turn off power according to the equipment’s service instructions before working on controls.
If wiring does not match the expected terminals, multiple systems are interconnected, or equipment must be opened beyond basic control access, professional HVAC or electrical help may be the safer choice.
Matching wires by color alone is one of the most common errors. Color conventions are useful, but the actual terminal connection determines function.
Another mistake is buying a thermostat before confirming system compatibility. Heat pumps, conventional systems, multi-stage equipment, zoning systems, and specialized heating controls may require different thermostat capabilities. Identify the equipment first, then choose a control designed to operate it.
During accessible construction, spare conductors can provide useful flexibility for future controls. The exact cable needed depends on the HVAC equipment and applicable installation requirements.
No. Power arrangements differ between thermostat models and HVAC systems. Some use a common conductor, while others support alternative manufacturer-approved methods. Check the specific thermostat and equipment documentation.
They should not be. Colors may follow common conventions, but previous installations can differ. Record the actual terminal connected to each conductor before changing the thermostat.
Thermostat wiring should support the HVAC system first and the wall control second. Install enough suitable conductors, document terminals at both ends, protect spare wires, and choose a thermostat location that reflects the room accurately.
Most upgrade problems begin with assumptions about old wiring. Good records and flexible cabling remove much of that uncertainty before the next thermostat is ever purchased.
